30" Series 9 Professional 5 Burner Dual Fuel Range, LPG
30" Series 9 Professional 5 Burner Dual Fuel Range, LPG
Dimensions
Height: 35 3/4 - 36 3/4"
Width: 29 7/8"
Depth: 29 1/8"
Color
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
- The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

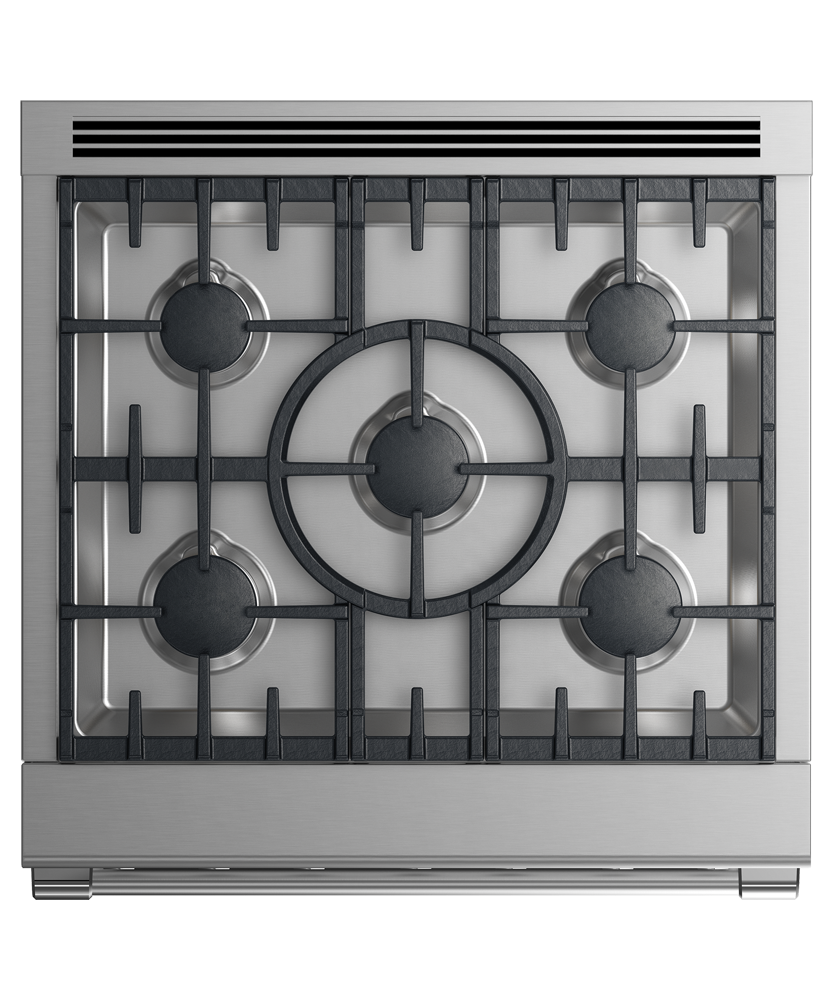

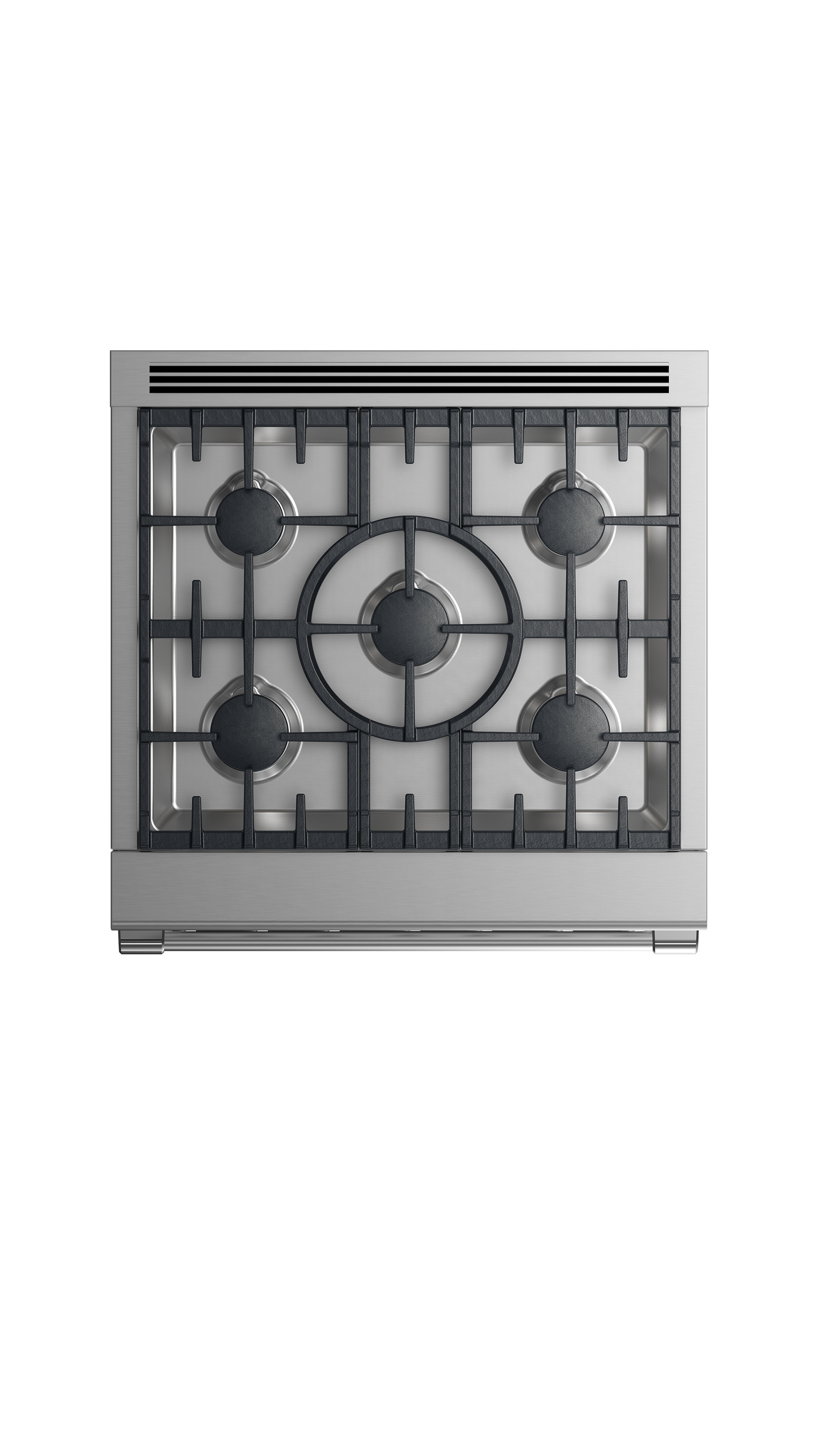

- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.
Product Description
Make a statement in less space, with this powerful gas burner range and spacious convection oven.
Rebates
Specification
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back left | 11500BTU |
| Power back right | 11500BTU |
| Power centre | 19000BTU |
| Power front left | 15000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 72000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Shelf positions (main oven) | 5 |
| Total capacity (main oven) | 4L |
| Cleaning | |
| Pyrolytic self-clean | true |
| Controls | |
| Electric circuit | 4 wire |
| Metal illuminated dials | true |
| Gas requirements | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (LPG) | 11" to 14" W.C |
| Oven features | |
| Auto re-ignition system | true |
| Broil pan | true |
| Concealed element | true |
| Electronic oven control | true |
| Full extension telescopic sliding shelves | true |
| Internal light | true |
| True convection | true |
| Oven functions | |
| Bake | true |
| Broil | true |
| Clean | true |
| Convection bake | true |
| Convection broil | true |
| Number of functions | 6 |
| True convection | true |
| Oven performance | |
| Bake power | 3500W |
| Broil | 4000 BTU |
| Main oven - True convection power | 2500W |
| Power requirements | |
| Amperage | 30A |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8" |
| Height | 35 3/4 - 36 3/4" |
| Width | 29 7/8" |
| Rangetop features | |
| Sealed range top | true |
| Vent trim included | true |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3030H |
| Minimum CFM | 600 |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
| Safety | |
| Full extension telescopic sliding shelves | true |
