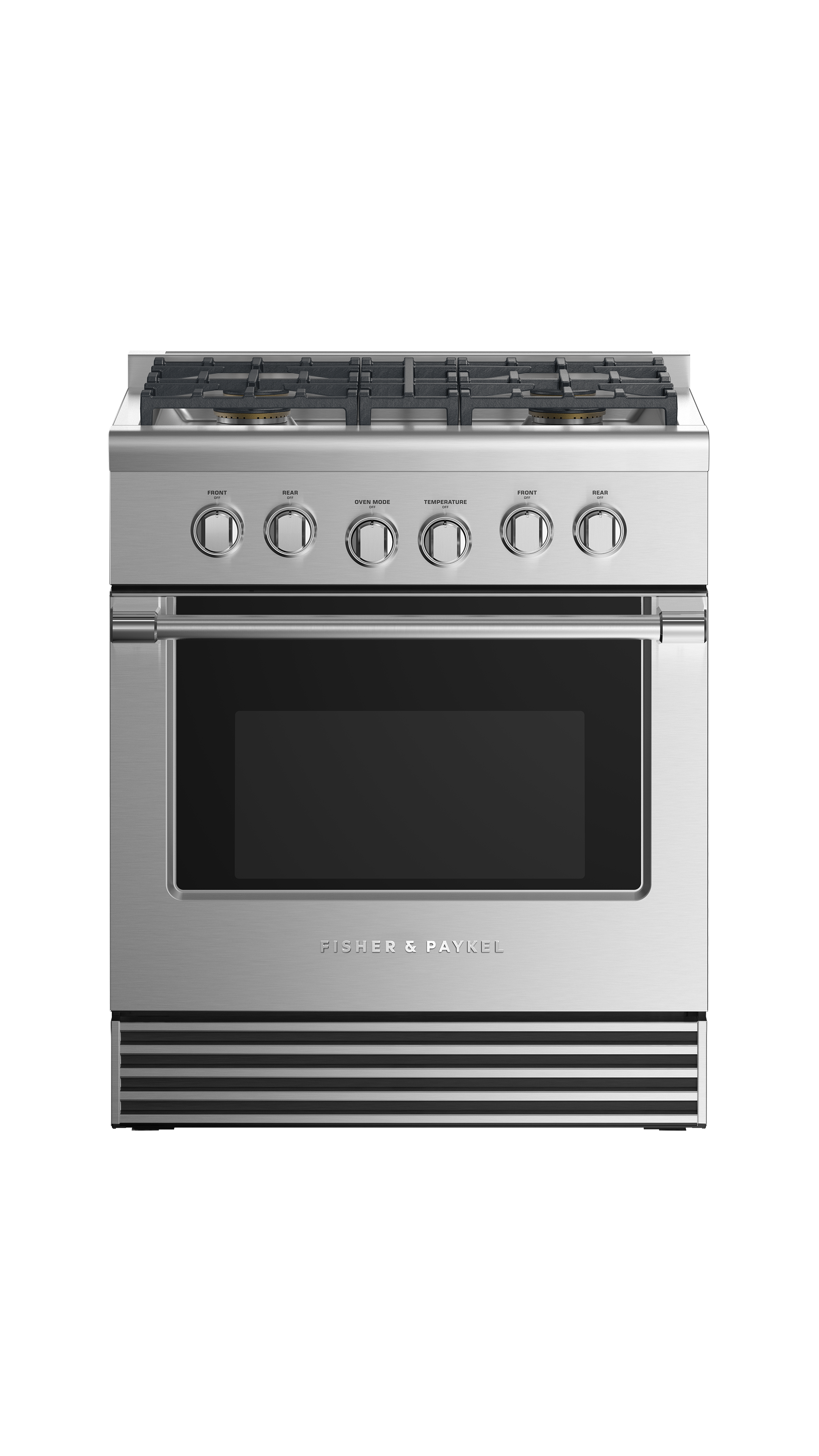

30" Series 9 Professional 4 Burner Dual Fuel Range, LPG
30" Series 9 Professional 4 Burner Dual Fuel Range, LPG
Dimensions
Height: 35 3/4 - 36 3/4"
Width: 29 7/8"
Depth: 29 1/8"
Color
Features
- Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
- The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Product Description
Make a statement in your kitchen with this Professional style range for powerful gas and convection cooking.
Rebates
Specification
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 60000 BTU |
| Capacity | |
| Shelf positions (main oven) | 5 |
| Total capacity (main oven) | 4L |
| Cleaning | |
| Pyrolytic self-clean | true |
| Controls | |
| Electric circuit | 4 wire |
| Metal illuminated dials | true |
| Gas requirements | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (LPG) | 11" to 14" W.C |
| Oven features | |
| Auto re-ignition system | true |
| Broil pan | true |
| Concealed element | true |
| Electronic oven control | true |
| Internal light | true |
| True convection | true |
| Oven functions | |
| Bake | true |
| Broil | true |
| Clean | true |
| Convection bake | true |
| Convection broil | true |
| Number of functions | 6 |
| True convection | true |
| Oven performance | |
| Bake power | 3500 |
| Main oven - True convection power | 2500W |
| Power requirements | |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8" |
| Height | 35 3/4 - 36 3/4" |
| Width | 29 7/8" |
| Rangetop features | |
| Sealed range top | true |
| Vent trim included | true |
| Safety | |
| Full extension telescopic sliding shelves | true |
